Which Is The Best 50 Degrees Refrigerator Thermostat

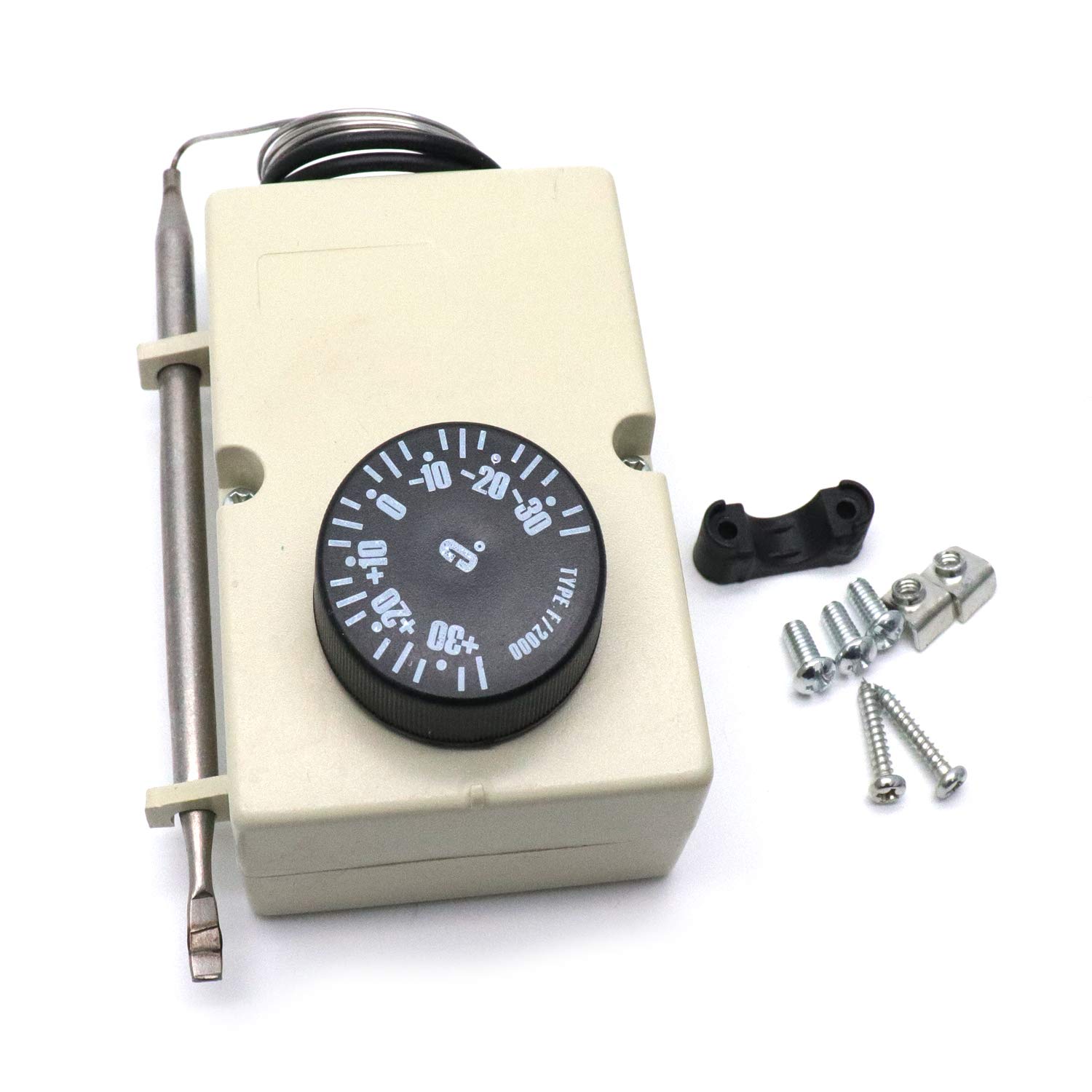

Specification:
Material : Metal, Plastic
Color : Black, Beige
Temperature Range : -30~30℃
Voltage Rating : 220V AC 16A (resistance)
Box size: 85x58x35mm/ 3.35″x2.28″x1.38″
Probe size: 6x105mm/ 0.24″x4.13″
Temperature control range: -35~35 ℃
Length of the probe tail: 1m
Principle of heat expansion and contraction: 2-3 degree of action temperature
Weight : 150g
Package : 1 x Thermostat

The principle of heating control:
For example, setting the temperature to 25 degrees, when the probe is measured at less than 25 degrees, P1 and 1 are closed and the instrument will be heated;
When the probe is measured at 25 degrees, the P1 and 1 are disconnected, and the heating will stop.

The principle of refrigeration control:
For example, set the temperature as 25 degrees.
When the probe temperature is below 25 degrees, P1 and 2 are disconnected.
The compressor does not work.
When the temperature rises to 25 degrees, the P1 and 2 will be closed.
The compressor will start to work and will cool down.
Cycle operation to achieve constant temperature.

Wiring method:
The thermostat has three copper wires: 1, 2, and P.
When the P and 1 strings are connected to the power circuit, the temperaturerises to the required control temperature, the power supply will be cut off automatically.
When the temperature is reduced, the power supply will be automatically connected.
When the P and 2 strings are connected to the power circuit, the temperature increases and the power will be turned on automatically.
When the temperature is reduced to the required temperature, the power supply will be cut off automatically.

Contact with us if you have any question, we’ll help you with our best.

Use this handy controller to regulate the temperature in your freezer between 20 – 80F . Great for turning a chest freezer into a keg refrigerator. Strictly a mechanical thermostat for cooling only, it is simple to use and economical. It operates with a gas filled probe on a 6-foot capillary tube. When the gas contracts or expands in the probe, it triggers a mechanical device inside the control which turns the power on or off. There is no probe temperature readout on the dial, so keeping a thermometer inside the refrigerator is highly recommended to keep track of the actual temperature. On most refrigerators, the controller will allow a usable range of 37 to 80 F, while on freezers, the controller will be able to reach its full 20 to 80 F range. Features: Made of stainless steel. Adjustable with the turn of a knob. No drilling necessary. Plug unit into wall and then run the sensor into your freezer. Male and female plug in one. Specs: Temperature dimensions: 4 3/8″ H x 2 1/8″ W x 1 1/2″ D. Cord dimensions: 6′. Remote sensor bulb: 5 1/2″W. Remote sensor bulb capillary tube: 6′. Temperature range: 20 – 80F. Voltage: 120 VAC.

This is a defrost thermostat. Designed to be a direct fit for many brands that use this exact stat This thermostat opens at 55 degrees and closes at 35 degrees. The Whirlpool brand names and logos are the registered trademarks of their respective owners. Any use of the Whirlpool brand name or model designation for this product is made solely for purposes of demonstrating compatibility. “The trademarks, logos, and service marks (collectively the “Trademarks”) displayed herein Supplying Demand are registered and unregistered trademarks of Supplying Demand, its affiliates, and others. Nothing contained herein should be construed as granting, by implication, estoppel, or otherwise, any license or right to use any trademark displayed herein without the written permission of Supplying Demand or such third party that may own the trademark displayed herein. Your misuse of the trademarks displayed herein, or any other content on this website, except as provided herein, is strictly prohibited.”

This refrigerator thermostat is an ideal replacement for your damaged thermostat, features 2 pins, D shaped shaft, AC 250A 6A, adjustable temperature dial.
Applicable: Control the temperature of refrigerator, display cabinet, congealer, beverage cooler and similar product.
Note: Please pay attention to the voltage before ordering.

SPECIFICATIONS

The 2198202 Refrigerator Cold Control Thermostat is used in refrigerator units and freezers as a sensor. The thermostat senses the temperature increase in the evaporator during the cycle of defrosting and turns off when ice is melted. The tools needed for this repair project is a putty knife, Phillips and flat blade screw driver, 1/4 inch nut driver, and needle nose pliers. Remember to unplug refrigerator from power source as a safety precaution. Refer to the manual provided by the manufacturer for further installation instructions.

Works with the following models::

Works with the following Whirlpool models: 2VED27TKN00; 2VED27TKW00 2VED27TKFN00; 2VED27TKFN01 2VED27TKFW00; 2VED27TKFW01

Replaces part numbers:

1110552; 1115242; 1115243 1115244; 1115245; 1129437 2161283; 2161284; 2169112 2169113; 2299; AP3037004; PS329884;

Fixes the following symptoms:

Will Not Start.
*Fridge too cold.
*Fridge and Freezer are too warm.
*Fridge runs too long.
*Freezer too cold.

Description:

Brand new and high quality!
Type: 2198202 Refrigerator Thermostat
Basic: 120V/240V,50/60 Hz,
Cold On: -3ºC/26.6ºF
Cold Off: -13.7ºC/7.3ºF
Warm: 10.5ºC/50.9 °F
Metal Cord Length: 1M
Color: As picture shows

Package include:

1 Set x 2198202 Thermostat cold control

The thermostat could work for Controlling Spa Hot Tub Pool Sauna Heater Fridge Freezer Refrigerator

Features:
Digital temperature controller, -50~110 °C/ -58~230 °F temperature measurement and control,
Display resolution of 0.1 degrees, 1 degree control resolution
Optional cooling or heating mode
1-25 degree adjustable hysteresis
Delay start function, 0-30 minutes adjustable
The lower range limit temperature adjustment function
Down with the data storage function,
Relay shock current 30A/220V. Reliable operation resistive load maximum 1000W, 600W maximum inductive load
The machine maximum power consumption: less than 2W
Measurement error: less than ± 1 °C
Working temperature: -40 °C ~ 80 °C

Electrical Performance:

Temperature control range: -50 ~ 110 Celsius / -58~230 Fahrenheit
Temperature measurement error: ± 1 Celsius
Sensor Type: NTC (10K/3435)

Sensor size: diameter 0.16”(4mm), length: 0.8” (20mm)

Sensor cable: 3.28”(1 meter)
Display Resolution: 0.1
Control accuracy: 1 Celsius
Supply Voltage for thermostat: 220VAC
Current: MAX 200MA
Relay contact current (2 options): 30A/220V (here 220V is the relay’s voltage, not supply voltage for the themostat)

Package included:
1 x Temperature Controller
1 x NTC Sensor with 3.28″ cable (1 meter)
1 x Manual

Product Description

ARB fridge freezers are the ideal way to keep your food and beverages chilled or frozen on your 4×4 adventures, regardless of ambient conditions. Not to be confused with less effective 12 volt ‘coolers’, the ARB unit is a true refrigerator/freezer. Own one and you’ll never again find your lunch water-logged by shifting ice, and there’ll always be a cold drink on hand during the sweltering summer months. The 50 quart model is the most popular size. Suitable for many medium to large SUV’s, wagons and pickups the internal capacity which boasts the ability to hold 72, 12 ounce cans.

Amazon.com

ARB fridge freezers are the ideal way to keep your food and beverages chilled or frozen during your adventures–regardless of ambient conditions. Not to be confused with less effective 12-volt “coolers”, the ARB unit is a true refrigerator/freezer with an efficient but powerful Danfoss compressor and control system. Own one and you’ll never again find your lunch waterlogged by shifting ice, and there’ll always be a cold drink on hand during the sweltering summer months.

Powerful, Reliable Cooling and Freezing Power
Many other 12-volt coolers use weak compressors to reduce the temperature of your food and beverages. ARB fridge freezers come equipped with robust Danfoss compressors to provide powerful refrigeration that can actually cools your food and drinks down–and then keeps them cold. All ARB fridge freezer models are capable of reducing the interior temperature to 0 degrees Fahrenheit.

ARB fridge freezers are designed to both actively and passively cool your food and drinks–even while the vehicle is off. When the internal temperature of the fridge rises above the digital thermostat’s setting, the compressor activates to cool the contents back down. The adjustable integrated battery protection system allows the fridge to sip battery power while your vehicle is off, keeping your food and drinks cold without overly draining your battery. Heavy duty insulation and hardware helps maintain chilly temperatures. The 50-quart model is able to maintain sub-freezing temperatures in 90 degree heat while only drawing 0.87 amps per hour from a 12-volt power source. That’s less power than a single headlamp draws. Once to temperature, ARB fridge freezers consume the least amount of power when compared to other leading brands.

Generous Compartments Let You Take More on the Road
The 50-quart model is the most popular ARB fridge size, and is perfect for small groups. Its footprint is suitable for most medium to large SUVs, wagons, and pickup trucks. The main internal compartment measures 13.27″ deep, 11.22″ wide, and 15.79″ high; and the dairy compartment measures 5.95″ deep, 11.22″ wide, and 8.11″ high. It can hold up to 72 12-ounce cans, and can also accommodate a two-liter bottle of soda.

Heavy-Duty Construction for Years of Use
Designed with travelers and off-road drivers in mind, all ARB fridge freezer models come equipped with a super-durable patented hinge system with a front-opening lid that provides easy access to fridge contents. This design is compatible with ARB fridge freezer slides, which provide quick drawer-like access to the entire unit and allows you to bolt the fridge to your vehicle. ARB fridge freezers can be mounted at extreme angles up to 30 degrees without affecting operation or reliability.

Two separate power cords are included. The DC power cord connects to your vehicle’s DC power outlet, providing 12 and 24-volt power to the unit while you’re on the go. The AC power cord plugs into a standard household electrical socket, and supplies power to the fridge when you’re at home or at your destination. A built-in cable retention system keeps the power cords neat when not in use. The power system is completely self-contained within the fridge unit, so there’s no external transformers or power “bricks” to worry about.

As with any refrigerator, it is important to have quality wiring running to the power outlet that you are plugging the fridge into. This minimizes harmful voltage drops which can harm internal parts. For increased product life, it is recommended that you protect the fridge freezer from weather and the elements.

Additional Features and Details

• Largest-in-class internal capacity for vehicle fridge freezers
• Front-mounted control panel with large buttons and bright LED display
• Electronic temperature settings
• Large, full-grip EZ latch secures the lid for a tight seal
• Drain plug aids in cleaning, and can be removed during storage to air the cabinet
• Rear-facing internal LED light automatically illuminates the cooling compartment
• The pre-assembled handles are non-rotating and strong enough for tie downs
• Separate compartment for dairy or fruit

Conclusion

By our suggestions above, we hope that you can found 50 degrees refrigerator thermostat for you.Please don’t forget to share your experience by comment in this post. Thank you!
