The 9 Best Bottled Water Dispensing System For Refrigerator

The 5000 Series bottle water system is designed for convenience and portability. When the unit is plugged into an AC power source and a water bottle is connected to the system, fresh water is available for use with coffee/tea machines, water dispensers, refrigerators, ice makers or any application where potable watered is needed. The unit shuts off when water in bottle is depleted and restarts automatically when the empty bottle is replaced with a full bottle.

Product descriptions

Specification:
1.Voltage:110-130V
2.Current : 0.5A
3.Max flow: 2.5L
4.Max pressure: 60 PSI
5.Package size:60*26*10cm

Applications
Refrigerator Water and Ice Maker
Coffee Makers
Espresso Makers
Water Dispensers
Sinks
Anywhere else on-demand water supply is needed

Package:
1 X Pump Module with On/Off Rocker
, 3.5ft.(1m) Cord
; 1 X 20ft PE pipe(diameter:1/4 inch)
; 1 X Universal seal cap
; 4 X Noise Dampening Silicone
; 1 X Universal wall transformer
; 1 X Instructions

Product Description This product is 100% BRAND NEW Our Bottled Water Pump is designed to pump water from commercially available water bottles. The system delivers the bottled water under pressure to a sink mounted drinking water faucet, or to the water inlet of a refrigerator, icemaker, coffee brewer or other equipment. The suction wand, when inserted into the water bottle, activates the float switch on the pump. This float switch also shuts off the system when the bottle is empty. Beware of inferior non-genuine products on the market that claim to be just as good Features: Compact for easy mounting Automatic shut off when bottle is empty Built-in check valve prevents backflow Fits a variety of bottles Positive displacement pump Smooth flow and quiet operation Automatic pump operating Easy bottle change Specifications Voltage: 120V AC Flow capacity: 1 Gallon per minute (3.78 Liters per minute) Max Water Pressure: 40 PSI Operating Pressure: 30 PSI Hose Outlets: 20ft 1/4″ Diameter Hose Included Approvals: CE Applications Refrigerator Water and Ice Maker Coffee Makers Espresso Makers Water Dispensers Sinks Anywhere else on-demand water supply is needed

Bottled Water Dispensing System 20 ft. Water Dispensing Pump System with US Plug 115V AC Perfect for 5 Gallon Bottle

Updated New Bottle Water Dispenser pump System with Transformer for water inlet of a refrigerator, coffee & Tea machine and anywhere else on-demand water supply is needed.

How it works:

The bottle water dispensing system was designed to pump water from a commercially available 5-gallon water bottle.
The heart of the system is the pump module that automatically adjusts the flow and pressure to fill an appliance or faucet, and stops automatically.
The wand has a built in back-flow preventor value that prevents water in the system from flowing back into the bottle, or spilling while changing bottles.
Wen the suction wand is inserted into the 5-gallon bottle, it will activate the float switch on the end of the wand and turn on the pump.This same float switch shuts off the system when the bottle is empty.
The system will deliver the water under pressure to an individual drinking water faucet, the water inlet of a refrigerator to the icemaker and chilled drinking water tap, and to certain commercial coffee/tee brewers.

INVERNTORY OF SYSTEM COMPONENTS
A.Universal wall transformer.
B.Suction wand and hose assembly.
C.20 ft (6.1m) of 1/4 in. (6.35mm) discharge tube.
D.Pump module with On/Off rocker switch, 3.5 ft. (1m) Cord.
E. Kit fitting: hose port/connector, compression nut and sleeve.

Specifications:

Material: ABS

Cable Length:75cm

Water Hose length:52cm

Power: USB cable

Rated voltage 12V

Rated power: 5W

Weight:450g

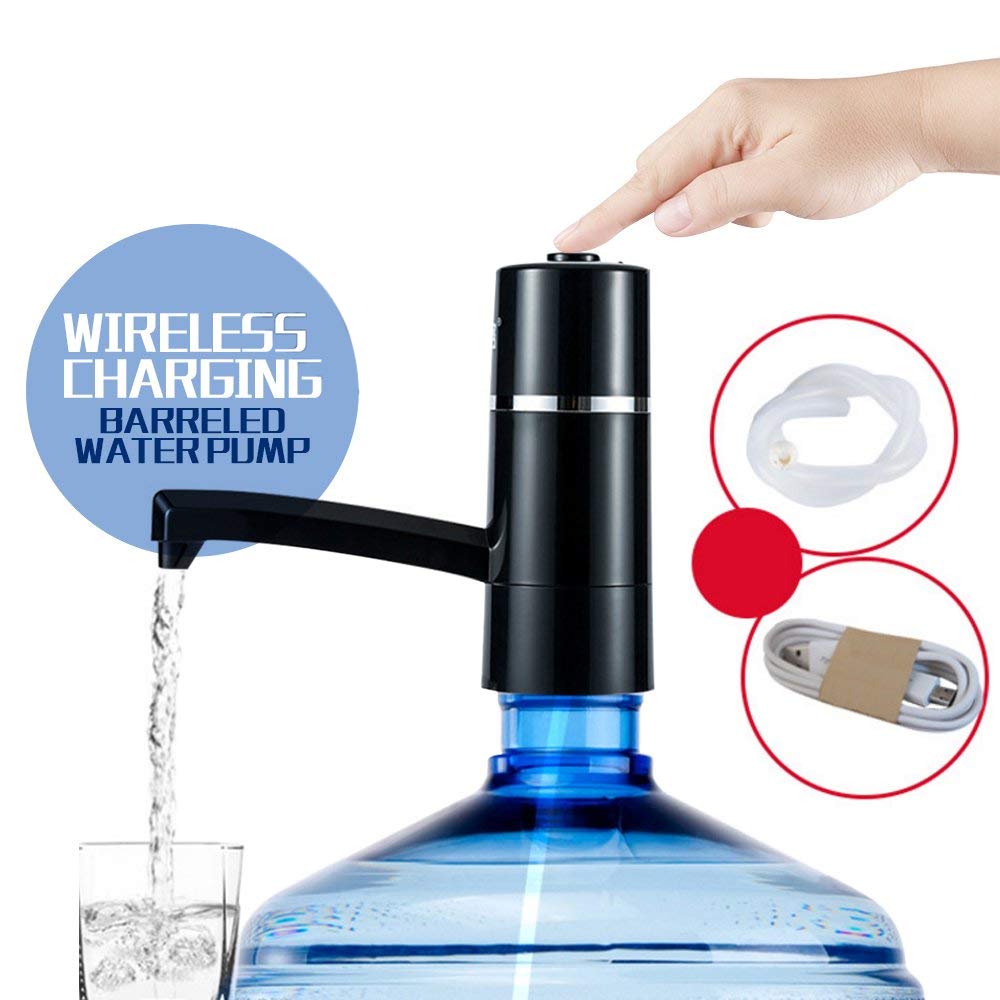

Description:

Charging by USB cable

Easy to install and use.

It can be used while you insert it in the mouth of bottled water.

Automatic electric suction device is very convenient and useful.

Electric and pumping device suitable for pure bottled drinking water,Suitable for a variety of models barrel without pry the lid.

Package Includes:

1 x Electric Bottle Pump

1 x USB Cable

1 x Transparent Hose

How to use:

1.Charging with the USB about 3 hours.

2.Connect the lower supply tube to the upper supper tube with the joint and insert them into the body hole tightly.

3.Insert pump into the bottle.Push the pump onto the neck of the bottle and turn clockwise to fixate it.

4.Press the head to start the water flow.

Tips:

– Please use the USB cable charger to charge.

– Charger output voltage can not exceed 5V.

– Charger output current can not exceed 1500mA.

Please Note:

1.Tthis pump can not heating or cooling water， would not change the temperature of water

2. Please allow 1-2cm error due to manual measurement. Thanks for your understanding.

3.Item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

The bottled water system is designed to make people’s lives more convenient. Once the water is used up, the pump will automatically shut down. When the water source is restored, the pump will automatically restart. This can well avoid the damage of the pump caused by dry running. Applicable to a variety of non-water source places: refrigerator ice water, beverage machine water supply, coffee machine water supply, household daily water supply.

Product parameters

Maximum flow: 1 gallon (3.8 liters)

Maximum pressure: 40 psi (2.8 bar)

Size: 3 × 5.5 × 7.5 × inches (14 × 19 × 7.6 cm)

Cycle: AC mode 50 / 60 Hz

Weight: 2.9 kg (5.6 lbs)

Products include:

Suction rod and hose assembly

Pump module with on/off switch

Insert a 6-foot curtain with a plug

1 foot 4 / 20″ tube

Universal sealing cap: for any 3, 5 and 6 gallon plastic water bottles

Installation and maintenance instructions

Conclusion

By our suggestions above, we hope that you can found bottled water dispensing system for refrigerator for you.Please don’t forget to share your experience by comment in this post. Thank you!
